Gedore 7 Series Metric Combination Spanner Wrench 18mm

Description

• Product code: 6091880.
• Model/series: 7 series.
• Acc. to DIN 3113, Form A, ISO 3318, ISO 7738
• Chrome-vanadium steel 31CrV3, chrome-plated
• Carefully forged and professionally machined
• Slim jaw and jaw walls make this spanner lighter overall
• Jaw: ground precisely to exact nominal size for optimum contact areas
• Ring: 15° offset from shaft, with UD profile for gentle transmission of force
• Overloading indicated by deformation
• Secure grip thanks to hollow shaft – very ergonomic and handy
• Glare-free look due to matt chrome
• Designed for universal use
• Top-grade industrial quality for the hardest of continuous use.
• Size 3-5.5mm with hexagonal ring, from 6mm with UD profile.

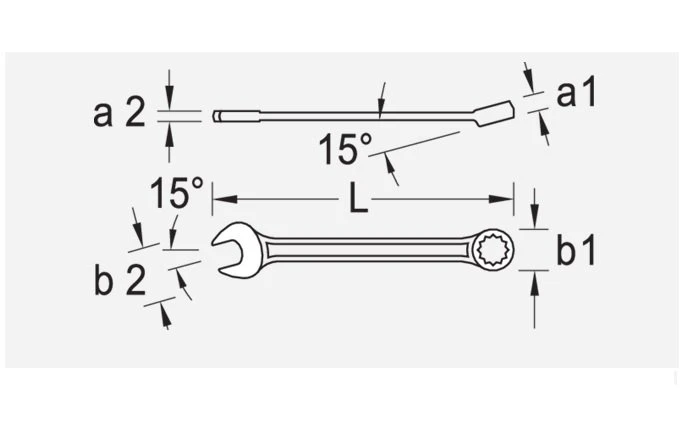

• Length: 220mm.
• A1: 11.0mm.
• A2: 6.2mm.
• B1 : 26mm.
• B2: 40mm.
